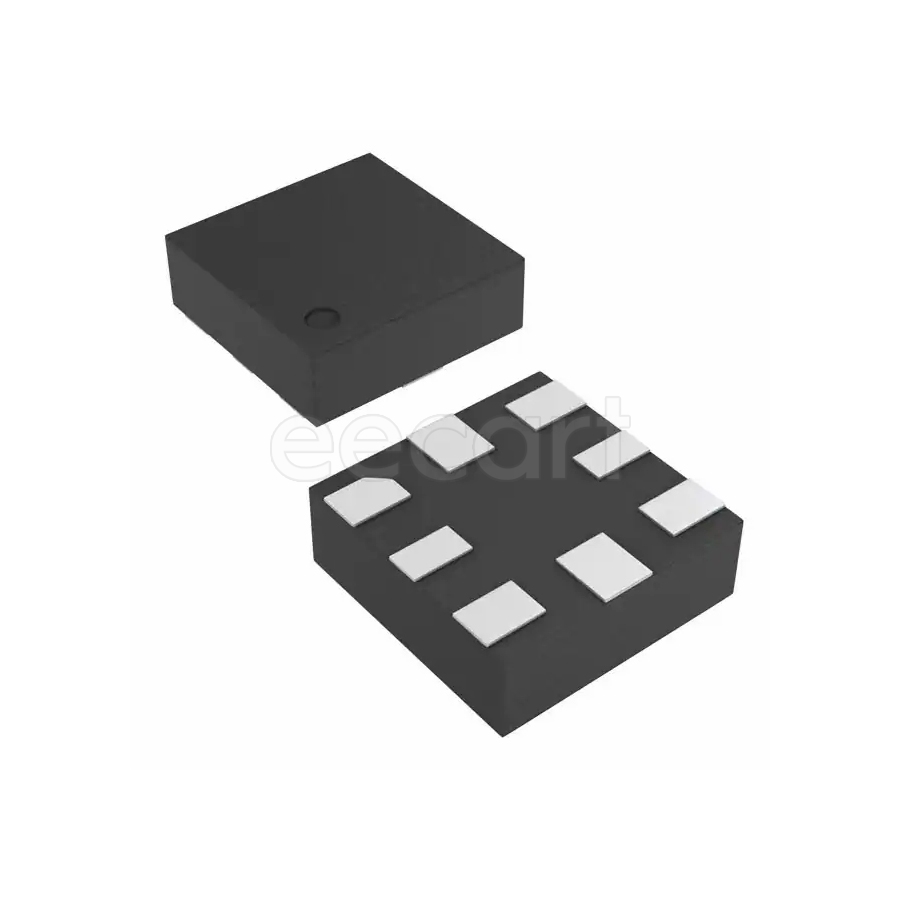

ADS7043IRUGR
Manufacturer:
Texas Instruments
Mfr.Part #:
ADS7043IRUGR
Datasheet:
Description:
Analog to Digital Converters (ADCs) X2QFN-8 SMD/SMT number of channels:1 Number of Inputs:1 1.5 B 1 Msps Core Architecture:SAR
| Parameter | Value |
|---|---|
| Length | 1.5 mm |
| Width | 1.5 mm |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 8 |
| Height | 400 µm |
| Packaging | Reel |
| Thickness | 370 µm |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Polarity | Bipolar, Unipolar |
| REACH SVHC | No SVHC |
| Weight | 5.896701 mg |
| Contact Plating | Gold, Silver |
| Features | Small Size |
| Number of Elements | 1 |
| Core Architecture(core/core processor) | SAR |
| Interface | SPI |
| Operating Supply Voltage | 3 V |
| Lifecycle Status | Production (Last Updated: 1 week ago) |
| Max Power Dissipation | 780 µW |
| Max Supply Voltage | 3.6 V |
| Min Supply Voltage | 1.65 V |
| Power Dissipation | 780 µW |
| Number of Channels | 1 |
| Number of Bits | 12 |
| Number of Inputs | 1 |
| Supply Type | Analog, Digital |
| Reference Type | Supply |
| Sampling Rate | 1 Msps |
| Integral Nonlinearity (INL) | 2 LSB |
| Number of Analog Inputs | 1 |
| Resolution | 1.5 B |
| Number of A/D Converters | 1 |
| Max Dual Supply Voltage | 1.8 V |
| Min Dual Supply Voltage | 900 mV |
| Signal to Noise Ratio (SNR) | 70 dB |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 1 week ago) |
| Max Digital Supply Voltage | 3.6 V |
| Min Digital Supply Voltage | 1.65 V |
| Input Type | Pseudo-Differential |
| Interface Type(Data Interface) | SPI |
| Analog Supply Voltage | 1.65 V to 3.6 V |
| Ratio - S/H:ADC | 1:1 |
| Configuration | S/H-ADC |
Stock: 567
Distributors
pcbx
pcbxUnit Price$1.93983
Ext.Price$1.93983
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.93983 | $1.93983 |
| 10 | $1.45167 | $14.51670 |
| 25 | $1.32685 | $33.17125 |
| 50 | $1.25930 | $62.96500 |
| 100 | $1.19519 | $119.51900 |
| 300 | $1.14408 | $343.22400 |
| 500 | $1.09517 | $547.58500 |
| 1000 | $1.06353 | $1063.53000 |
| 3000 | $1.02591 | $3077.73000 |
| 5000 | $1.00796 | $5039.80000 |
